- Place of Origin: China
- Brand Name: BSTFLEX
- Model Number: BST-IFRS
500°F/260°C Continuous Exposure: Higher Intermittent

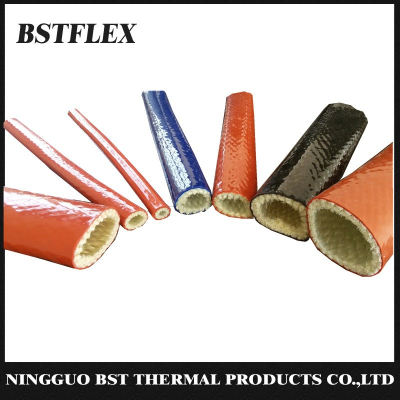

Industry Silicone coated Fiberglass Fire Sleeve
Industry Fire sleeve is designed to protect hoses,wires and cables from the hazards of high heat and occasional flame.
Fire Sleeve protects continuously to 260°C/500°F and will withstand a molten splash at 1200°C/2200°F. Made of braided fiberglass yarns in a flexible substrate,it is then coated with a high grade silicone rubber.
Resistant to hydraulic fluids, Lubricating oils,and fuels, Silicone Sleeve insulates against energy loss in piping and hosing;protects employees from burns;and allows bunding of wires,hoses,and cables.
Industry Silicone coated Fiberglass Fire Sleeve is the perfect cover to protect hydraulic hoses,pneumatic lines and wiring bundles.
Silicone coated fiberglass Fire Sleeve can withstand repeated exposures to molten steel, molten aluminum and molten glass up to 3000°F (1650°C).
Always wear safety glasses, dust mask, gloves and long sleeves are recommended when handling this product
Proudly Made By BST Thermal Protection Products Co.,Ltd
| Industry Silicone coated Fiberglass Fire Sleeve quick facts | |
| Color | red oxide, blue, gray, gold, black, yellow, pink, silver, purple and green |
| Material | Silicone, fiberglass |
| Continuous operating temp | 500°F (260°C) |
| Max short term exposure | 3000°F (1650°C) |
- Place of Origin: China
- Brand Name: BSTFLEX
- Model Number: BST-IFRS
| Industrial Fire Sleeve Size | |||
| Normal Inside diameter Inches/ mm/ Dash # | Part Number | ||
| 1/4 | 6 | -04 | FS-IG-M006-04-X |
| 5/16 | 8 | -05 | FS-IG-M008-05-X |
| 3/8 | 10 | -06 | FS-IG-M010-06-X |
| 7/16 | 11 | -07 | FS-IG-M011-07-X |
| 1/2 | 13 | -08 | FS-IG-M013-08-X |
| 5/8 | 16 | -10 | FS-IG-M016-10-X |
| 3/4 | 19 | -12 | FS-IG-M019-12-X |
| 7/8 | 22 | -14 | FS-IG-M022-14-X |
| 1 | 25 | -16 | FS-IG-M025-16-X |
| 1 1/8 | 29 | -18 | FS-IG-M029-18-X |
| 1 1/4 | 32 | -20 | FS-IG-M032-20-X |
| 1 3/8 | 35 | -22 | FS-IG-M035-22-X |
| 1 1/2 | 38 | -24 | FS-IG-M038-24-X |
| 1 5/8 | 41 | -26 | FS-IG-M041-26-X |
| 1 3/4 | 44 | -28 | FS-IG-M044-28-X |
| 1 7/8 | 48 | -30 | FS-IG-M048-30-X |
| 2 | 51 | -32 | FS-IG-M051-32-X |
| 2 1/4 | 57 | --36 | FS-IG-M057-36-X |
| 2 2/5 | 60 | -38 | FS-IG-M060-38-X |
| 2 1/2 | 64 | -40 | FS-IG-M064-40-X |
| 2 5/8 | 67 | -42 | FS-IG-M067-42-X |
| 2 3/4 | 70 | -44 | FS-IG-M070-44-X |
| 2 7/8 | 73 | -46 | FS-IG-M073-46-X |
| 3 | 76 | -48 | FS-IG-M076-48-X |
| 3 1/4 | 83 | -52 | FS-IG-M083-52-X |
| 3 1/2 | 89 | -56 | FS-IG-M089-56-X |
| 3 3/4 | 95 | -60 | FS-IG-M095-60-X |
| 4 | 102 | -64 | FS-IG-M102-64-X |
| 4 1/2 | 114 | -72 | FS-IG-M114-72-X |
| 4 3/4 | 121 | -76 | FS-IG-M121-76-X |
| 5 | 127 | -80 | FS-IG-M127-80-X |
| 6 | 152 | -96 | FS-IG-M152-96-X |
For the “-X” value above in the part number, “-red” for red, “-black” for black.
