- Place of Origin: China
- Brand Name: BSTFLEX
- Model Number: BST-FGS

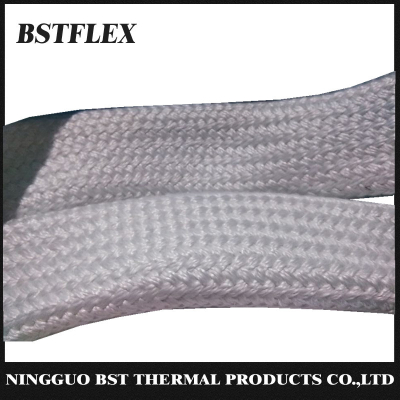

is a braided fiberglass (fibreglass / glassfibre) sleeve, fabricated from high quality type E fiberglass that will not burn and will withstand continuous exposure to temperatures of 1100°F / 593°C. It provides excellent protection for industrial wires, cables, hydraulics hoses , tube and pipes and also provides thermal insulation and personnel protection.
Fiberglass Braided Sleeve can be used by itself, or under other sleeve products (such as FIRE SLEEVE) to significantly boost insulation values at modest cost.
Fiberglass Braided Sleeve is available in 2 grades: 1/8″ (3.2 mm) wall thickness or 1/16″ (1.6 mm) wall thickness.
Fiberglass Braided Sleeve resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.
| Braided Fiberglass Sleeve quick facts | |
| Color | nature |
| Material | fiberglass |
| Continuous operating temp | 1100°F (593°C) |
| Max short term exposure | 3000°F (1650°C) |
- Place of Origin: China
- Brand Name: BSTFLEX
- Model Number: BST-FGS
| Braided Fiberglass Sleeve Size | |||
| Normal Inside diameter Inches/ mm/ Dash # | Part Number | ||
| 1/4 | 6 | -04 | FBS-M006-04-X |
| 5/16 | 8 | -05 | FBS-M008-05-X |
| 3/8 | 10 | -06 | FBS-M010-06-X |
| 7/16 | 11 | -07 | FBS-M011-07-X |
| 1/2 | 13 | -08 | FBS-M013-08-X |
| 5/8 | 16 | -10 | FBS-M016-10-X |
| 3/4 | 19 | -12 | FBS-M019-12-X |
| 7/8 | 22 | -14 | FBS-M022-14-X |
| 1 | 25 | -16 | FBS-M025-16-X |
| 1 1/8 | 29 | -18 | FBS-M029-18-X |
| 1 1/4 | 32 | -20 | FBS-M032-20-X |
| 1 3/8 | 35 | -22 | FBS-M035-22-X |
| 1 1/2 | 38 | -24 | FBS-M038-24-X |
| 1 5/8 | 41 | -26 | FBS-M041-26-X |
| 1 3/4 | 44 | -28 | FBS-M044-28-X |
| 1 7/8 | 48 | -30 | FBS-M048-30-X |
| 2 | 51 | -32 | FBS-M051-32-X |
| 2 1/4 | 57 | --36 | FBS-M057-36-X |
| 2 2/5 | 60 | -38 | FBS-M060-38-X |
| 2 1/2 | 64 | -40 | FBS-M064-40-X |
| 2 5/8 | 67 | -42 | FBS-M067-42-X |
| 2 3/4 | 70 | -44 | FBS-M070-44-X |
| 2 7/8 | 73 | -46 | FBS-M073-46-X |
| 3 | 76 | -48 | FBS-M076-48-X |
| 3 1/4 | 83 | -52 | FBS-M083-52-X |
| 3 1/2 | 89 | -56 | FBS-M089-56-X |
| 3 3/4 | 95 | -60 | FBS-M095-60-X |
| 4 | 102 | -64 | FBS-M102-64-X |
| 4 1/2 | 114 | -72 | FBS-M114-72-X |
| 4 3/4 | 121 | -76 | FBS-M121-76-X |
| 5 | 127 | -80 | FBS-M127-80-X |
| 6 | 152 | -96 | FBS-M152-96-X |
