- Place of Origin: China
- Brand Name: BSTFLEX
- Model Number: BST-HFRS
500°F/260°C Continuous Exposure: Higher Intermittent

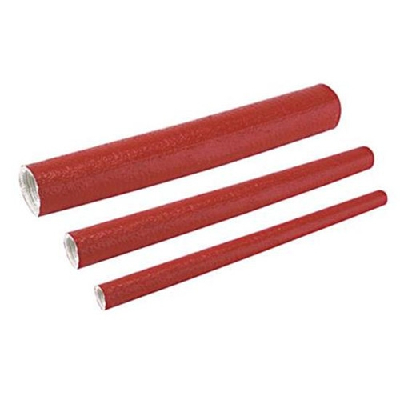

Aerostyle SAE AS1072 Fire Sleeve
Aerostyle SAE AS1072 Fire Sleeve was specially developed to meet the fire resistance requirements of FAATSO - C53a OR TSO - C75.
Aerostyle SAE AS1072 Fire Sleeve can withstand repeated exposures to molten steel, molten aluminum and molten glass up to 3000°F (1650°C).
Sheds splash immediately
Aerostyle SAE AS1072 Fire Sleeve withstands repeated exposures to molten steel, molten aluminum and molten glass up to 3000°F (1650°C). The heavy coating of our proprietary iron oxide red silicone rubber compound sheds molten metal splash immediately, so very little heat transfer occurs.
Withstands intense radiant heat and flame
Aerostyle SAE AS1072 Fire Sleeve will withstand continuous exposure to 500° F (260°C); up to 2000°F (1090°C) for 15-20 minutes; and up to 3000°F (1650°C) for 15-30 seconds. When exposed to flame, the silicone rubber transforms into a crust, creating a protective SiO2 refractory layer.

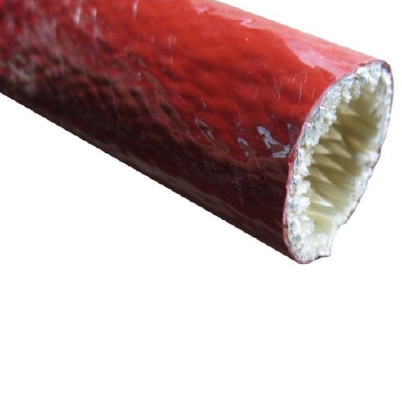

Aerostyle SAE AS1072 Fire Sleeve is constructed from high bulk glass fiber braided sleeve. Excellent modulus of elasticity makes it an excellent choice for bundling hoses, tubes and cables in a variety of hostile environments.
Protect your personnel and cut your energy loss
Aerostyle SAE AS1072 Fire Sleeve is insulation properties provide personnel with effective protection against burns from hot hoses and flexible steam lines, while reducing heat energy losses.
Always wear safety glasses, dust mask, gloves and long sleeves are recommended when handling this product
- Place of Origin: China
- Brand Name: BSTFLEX
- Model Number: BST-HFRS
Aerostyle Fire Sleeve Size | |||
Normal Inside diameter Inches/ mm/ Dash # | Part Number | ||
1/4 | 6 | -04 | FS-AG-M006-04-X |
5/16 | 8 | -05 | FS-AG-M008-05-X |
3/8 | 10 | -06 | FS-AG-M010-06-X |
7/16 | 11 | -07 | FS-AG-M011-07-X |
1/2 | 13 | -08 | FS-AG-M013-08-X |
5/8 | 16 | -10 | FS-AG-M016-10-X |
3/4 | 19 | -12 | FS-AG-M019-12-X |
7/8 | 22 | -14 | FS-AG-M022-14-X |
1 | 25 | -16 | FS-AG-M025-16-X |
1 1/8 | 29 | -18 | FS-AG-M029-18-X |
1 1/4 | 32 | -20 | FS-AG-M032-20-X |
1 3/8 | 35 | -22 | FS-AG-M035-22-X |
1 1/2 | 38 | -24 | FS-AG-M038-24-X |
1 5/8 | 41 | -26 | FS-AG-M041-26-X |
1 3/4 | 44 | -28 | FS-AG-M044-28-X |
1 7/8 | 48 | -30 | FS-AG-M048-30-X |
2 | 51 | -32 | FS-AG-M051-32-X |
2 1/4 | 57 | --36 | FS-AG-M057-36-X |
2 2/5 | 60 | -38 | FS-AG-M060-38-X |
2 1/2 | 64 | -40 | FS-AG-M064-40-X |
2 5/8 | 67 | -42 | FS-AG-M067-42-X |
2 3/4 | 70 | -44 | FS-AG-M070-44-X |
2 7/8 | 73 | -46 | FS-AG-M073-46-X |
3 | 76 | -48 | FS-AG-M076-48-X |
3 1/4 | 83 | -52 | FS-AG-M083-52-X |
3 1/2 | 89 | -56 | FS-AG-M089-56-X |
3 3/4 | 95 | -60 | FS-AG-M095-60-X |
4 | 102 | -64 | FS-AG-M102-64-X |
4 1/2 | 114 | -72 | FS-AG-M114-72-X |
4 3/4 | 121 | -76 | FS-AG-M121-76-X |
5 | 127 | -80 | FS-AG-M127-80-X |
6 | 152 | -96 | FS-AG-M152-96-X |
For the “-X” value above in the part number, “-red” for red, “-black” for black.
